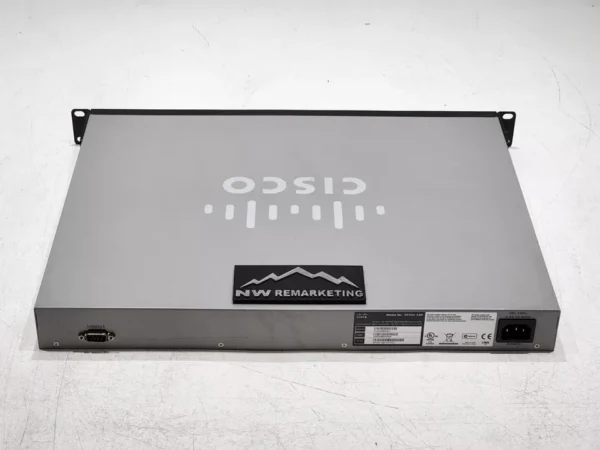

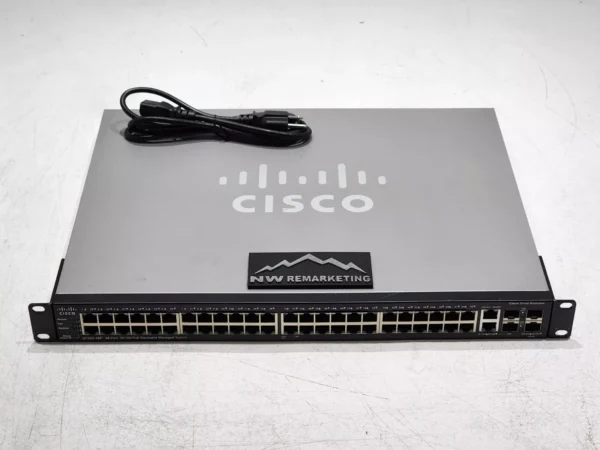

Cisco SF500-48P-K9

Key Features of the Cisco SF500-48P-K9:

1. 48 Gigabit Ethernet Ports:

   • The SF500-48P-K9 has 48 x 10/100/1000 Mbps (Gigabit Ethernet) ports, providing fast and reliable connectivity for various network devices, such as workstations, printers, and other networked equipment.

2. Power over Ethernet (PoE) Support:

   • The “P” in the model number indicates that the SF500-48P-K9 supports PoE (Power over Ethernet), which allows the switch to deliver power to devices such as IP phones, wireless access points (WAPs), and IP cameras directly over the Ethernet cable.
   • It provides 370W of total PoE power, which can be distributed across the 48 ports, depending on the power requirements of the connected devices.
   • This eliminates the need for separate power adapters or power cords, simplifying the deployment of PoE-enabled devices.

3. Layer 3 Capabilities:

   • The SF500-48P-K9 is a Layer 3 switch, meaning it has some routing capabilities in addition to its Layer 2 switching features. It can perform inter-VLAN routing, static routing, and other Layer 3 features, allowing it to route traffic between different VLANs within the same network.
   • This functionality is helpful in more complex network topologies where devices across different subnets need to communicate with each other.

4. Advanced Security Features:

   • The SF500-48P-K9 includes a variety of security features to help protect the network from unauthorized access and attacks:
     • Access Control Lists (ACLs): To define rules that control access to network resources.
     • Port Security: To restrict which devices can connect to specific ports.
     • DHCP Snooping: To prevent rogue DHCP servers from assigning IP addresses to network devices.
     • 802.1X Authentication: To ensure that only authenticated devices are allowed to connect to the network.

5. Smart Switch:

   • As a smart switch, the SF500-48P-K9 provides more advanced management features than unmanaged switches but is simpler to configure and manage than fully managed switches.
   • It supports a web-based GUI (Graphical User Interface) for easy setup and configuration, as well as CLI (Command-Line Interface) for more advanced users.
   • The switch can also be managed via SNMP (Simple Network Management Protocol) for monitoring and troubleshooting network performance.

6. VLAN Support:

   • The switch supports the creation of VLANs (Virtual Local Area Networks) to segment the network into different logical networks. This improves network efficiency, security, and organization by isolating traffic between different departments or groups within the organization.
   • It supports VLAN trunking (802.1Q) to allow multiple VLANs to pass through a single network link, enabling better network management and traffic control.

7. Quality of Service (QoS):

   • QoS features ensure that critical traffic, such as VoIP (Voice over IP) and video conferencing, receives priority over less critical data, ensuring consistent and high-quality performance for time-sensitive applications.
   • The switch can prioritize traffic and manage bandwidth usage, which is especially important in networks with a mix of data, voice, and video applications.

8. Multicast Support:

   • The SF500-48P-K9 supports IGMP Snooping and PIM (Protocol Independent Multicast), enabling efficient multicast routing in environments that require the delivery of data (such as video streams or software updates) to multiple recipients simultaneously.

9. Stacking Capability:

   • Although it is not a stackable switch in the traditional sense (like the Cisco Catalyst series), the SF500-48P-K9 allows for link aggregation (also known as port channeling) to increase the bandwidth between switches or devices.

10. Energy Efficiency:

    • The SF500-48P-K9 is designed to be energy efficient, with support for Energy Efficient Ethernet (EEE). This helps to reduce energy consumption when network traffic is low, leading to lower operating costs over time.

11. Warranty and Support:

    • Cisco offers a limited lifetime warranty for the SF500-48P-K9, along with access to Cisco’s online support and documentation. For more extensive support, users can subscribe to Cisco’s Smart Net Total Care service for technical assistance and software updates.

Summary of Specifications:

• Ports: 48 x 10/100/1000 Mbps Ethernet ports (Gigabit)
• PoE Power: Up to 370W of total PoE power
• Layer 3 Routing: Yes (Inter-VLAN routing, static routing)
• Security: 802.1X, Port Security, ACLs, DHCP Snooping
• Management: Web-based GUI, CLI, SNMP
• VLAN Support: Yes (supports up to 256 VLANs)
• Quality of Service (QoS): Yes (traffic prioritization for voice, video, and data)
• Multicast Support: Yes (IGMP Snooping, PIM)
• Energy Efficiency: Energy Efficient Ethernet (EEE) support
• Form Factor: Rack-mounted (1U)
• Warranty: Limited lifetime warranty

Use Cases:

1. Small to Medium-Sized Businesses (SMBs):

   • The SF500-48P-K9 is designed for SMBs that require a reliable, high-performance network switch with both PoE support and Layer 3 routing capabilities, making it ideal for environments with a mix of data, voice, and video applications.

2. VoIP and Video Conferencing:

   • This switch is perfect for businesses that deploy VoIP phones, video conferencing equipment, and wireless access points since it supports PoE to power these devices directly over Ethernet and provides QoS to prioritize time-sensitive traffic like voice and video.

3. Surveillance and Security:

   • For companies deploying IP cameras and other security devices, the SF500-48P-K9 offers both PoE and the necessary network management features to ensure smooth and secure operation of surveillance systems.

4. Education and Branch Offices:

   • In schools, colleges, and remote office locations, where cost-effective but high-performance networking is essential, this switch can support various devices, provide the necessary security and QoS features, and ensure scalability as the network grows.

5. Network Expansion:

   • For growing businesses looking for a scalable and manageable solution that allows them to easily add new devices and expand their network, the SF500-48P-K9 can provide the necessary infrastructure to handle increased traffic and device demands.
