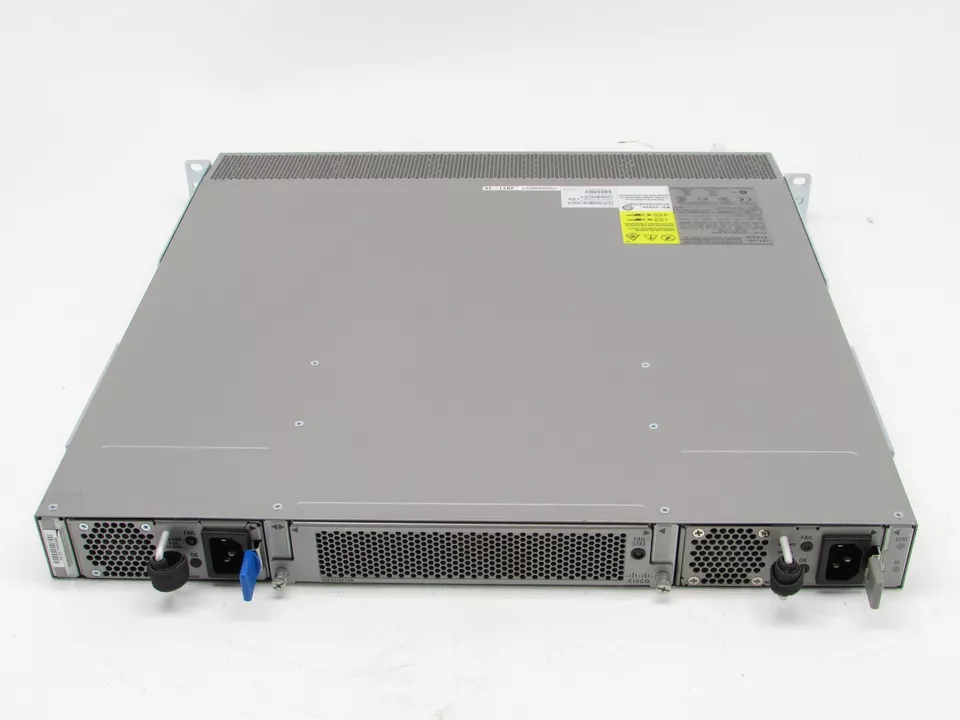

N2K-C2232PP-10GE

Key Features of the Cisco Nexus N2K-C2232PP-10GE:

1. High-Density 10GbE Ports:

   • The N2K-C2232PP-10GE features 32 x 10-Gigabit Ethernet (10GbE) SFP+ ports. These ports are primarily used for high-speed network connections, providing bandwidth and low latency for data-intensive applications.
   • It supports both 10GbE and 1GbE speeds via SFP+ and SFP transceivers, making it versatile for different network configurations.

2. Fabric Extender for Nexus Switches:

   • The N2K-C2232PP-10GE is a Fabric Extender (FEX), which means it acts as an extension of a parent Nexus switch (such as the Nexus 5000, 7000, or 9000 series). The FEX doesn’t function as a standalone switch, but instead relies on the parent switch for control and management, providing network extension in a simplified manner.
   • By using the FEX model, you can scale out your data center network easily and efficiently, minimizing the number of devices you need to manage and simplifying network operations.

3. Power over Ethernet (PoE+):

   • The N2K-C2232PP-10GE includes Power over Ethernet Plus (PoE+) support on its 32 ports, which can provide up to 25.5 watts of power per port. This feature is ideal for powering devices such as IP phones, wireless access points, and cameras directly from the network, reducing the need for additional power infrastructure.

4. Scalability and High Availability:

   • The N2K-C2232PP-10GE offers significant scalability within a network, allowing businesses to grow their infrastructure by adding more FEX units to extend their fabric.
   • The Nexus 2000 Series is designed for high availability with redundant fans and power supplies to ensure reliability and uptime. It supports non-disruptive firmware upgrades as well, ensuring minimal downtime during maintenance.

5. Layer 2 and Layer 3 Capabilities:

   • The N2K-C2232PP-10GE supports Layer 2 switching and Layer 3 routing capabilities, allowing for flexibility in various network configurations. For instance, it can handle traffic at the data link layer (Layer 2) for Ethernet switching, as well as routing between different networks at Layer 3.
   • It provides VLAN (Virtual Local Area Network) support for segmentation of network traffic, ensuring better performance and security for different applications.

6. Integration with Cisco Nexus Fabric:

   • The Nexus 2000 Series FEX is tightly integrated into the Cisco Nexus Fabric architecture, enabling a unified network management and automation model. The parent Nexus switches, which control the FEX, provide a centralized management interface, making it easier for network administrators to configure and monitor the entire network.
   • This integration simplifies both setup and maintenance, with features like zero-touch provisioning and single-pane-of-glass management.

7. Low Latency and High Throughput:

   • The Nexus 2000 Series, including the N2K-C2232PP-10GE, is optimized for low-latency and high-throughput performance, making it ideal for high-performance computing (HPC), big data analytics, and cloud environments. Its 10GbE ports provide the high-speed interconnects required to handle large data sets with minimal delays.

8. Compact and Efficient Design:

   • The N2K-C2232PP-10GE is a 1U rack-mountable unit, making it space-efficient for high-density deployments. Despite its small form factor, it offers high port density, helping organizations save valuable rack space in their data centers.

9. Advanced Security Features:

   • The Nexus 2000 Series supports various security protocols, such as 802.1X, MAC Security (MACsec), and Access Control Lists (ACLs), to ensure that network access is restricted to authorized devices and users only.
   • Additionally, it can integrate with Cisco Identity Services Engine (ISE) for more granular network access control and policy enforcement.

10. Cisco Unified Fabric:

• The Nexus 2000 FEX is designed for the Cisco Unified Fabric architecture, which aims to provide a converged network for both data and storage. This architecture helps organizations manage traffic more efficiently and reduces the complexity associated with maintaining separate networks for different types of services.

Specifications:

• Ports: 32 x 10GbE SFP+ (10Gbps) ports, which can support 1GbE SFP or 10GbE SFP+ transceivers
• Power over Ethernet (PoE+): Supports PoE+ on all 32 ports, providing up to 25.5 watts per port
• Form Factor: 1U rack-mountable
• Redundancy: Dual power supplies and fans for high availability
• Forwarding Rate: Offers high forwarding rates for low-latency environments
• Switching Capacity: Provides high throughput for data center networking applications
• Supported Protocols: Supports a wide range of network protocols, including VLANs, Spanning Tree Protocol (STP), Link Aggregation, and EtherChannel.
• Management: Managed through the parent Nexus switch, which simplifies centralized control and configuration.

Use Cases:

1. Data Center Expansion:

   • The N2K-C2232PP-10GE is commonly used to expand data center networks, adding more high-speed connectivity without the need to deploy a full switch. It extends the capacity of Nexus 5000, 7000, and 9000 Series switches, allowing for seamless scaling of the network as the business grows.

2. High-Performance Networking:

   • Ideal for environments requiring high throughput, such as cloud computing, high-performance computing (HPC), big data analytics, and enterprise data centers, where low-latency and high-bandwidth are critical.

3. Virtualized Environments:

   • The N2K-C2232PP-10GE supports virtualized data centers, enabling high-speed connections for virtual machines and offering connectivity for virtualized workloads across 10GbE Ethernet links. It’s particularly useful for businesses that rely heavily on server virtualization or private cloud infrastructures.

4. PoE+ Deployment:

   • The inclusion of PoE+ (Power over Ethernet Plus) makes it a great solution for environments where you need to power devices such as IP phones, wireless access points (WAPs), and security cameras directly through the Ethernet connection.

5. Campus Network Edge:

   • It is also used in campus network edge scenarios where high-density Ethernet connections are required for edge access switches connecting users to the data center or core network.
