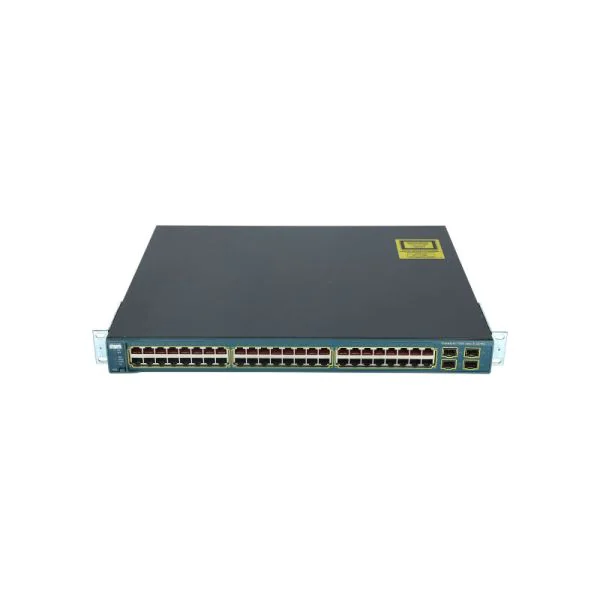

WS-C3560-48TS-S

Key Features of the Cisco WS-C3560-48TS-S:

1. 48 Gigabit Ethernet Ports:

   • The WS-C3560-48TS-S is equipped with 48 x 10/100/1000 Mbps Gigabit Ethernet ports, offering high-speed connectivity for a range of devices such as computers, servers, workstations, and IP phones.
   • The Gigabit Ethernet ports support full-duplex communication, ensuring fast and reliable data transmission across the network.

2. Layer 3 Routing Capabilities:

   • As a Layer 3 switch, the WS-C3560-48TS-S offers IP routing capabilities, allowing for inter-VLAN routing. This means that traffic can be routed between different VLANs (Virtual Local Area Networks), enhancing network segmentation and efficiency.
   • The switch supports various routing protocols, such as:
     • RIP (Routing Information Protocol)
     • OSPF (Open Shortest Path First)
     • Static Routing
   • These routing protocols enable seamless communication between subnets and ensure efficient routing across the network.

3. Security Features:

   • The WS-C3560-48TS-S provides comprehensive security features to protect the network and ensure the integrity of the communication:
     • 802.1X Port-Based Authentication: This feature authenticates devices before granting them access to the network.
     • Access Control Lists (ACLs): Allows for granular traffic filtering and management, restricting or permitting traffic based on defined security policies.
     • DHCP Snooping: Helps prevent rogue DHCP servers from assigning IP addresses by inspecting DHCP packets.
     • Dynamic ARP Inspection (DAI): Protects the network from ARP spoofing attacks, ensuring that ARP packets are valid.
     • Private VLANs: Enables isolated communication between devices in the same VLAN, improving security by limiting the ability of devices to communicate with one another.

4. Quality of Service (QoS):

   • The WS-C3560-48TS-S includes Quality of Service (QoS) capabilities, which ensure that critical applications like VoIP (Voice over IP), video conferencing, and streaming media are prioritized on the network.
   • QoS ensures low latency and consistent performance for time-sensitive applications by prioritizing high-priority traffic over less critical data.

5. Cisco StackWise Technology:

   • The switch supports Cisco StackWise technology, which allows multiple WS-C3560-48TS-S switches to be stacked and managed as a single logical unit. This simplifies management, reduces operational complexity, and ensures high scalability.
   • The StackWise technology provides high bandwidth (up to 32 Gbps) between stacked switches, maintaining performance even as the network expands.

6. Cisco IOS Software:

   • The WS-C3560-48TS-S runs on Cisco IOS Software, which is known for its robust set of features for network management, configuration, and monitoring.
   • The IP Base feature set provides essential Layer 3 routing functions, VLAN support, and basic security features. Advanced capabilities like OSPF, BGP, and additional security features can be enabled through a software upgrade to the IP Services image.

7. High Availability:

   • The switch supports redundant power supplies (RPS) for higher availability. In case of a power failure, the switch can continue to operate without interruption, ensuring the network remains operational.
   • The WS-C3560-48TS-S also supports hot-swappable fan modules, so they can be replaced without requiring the system to be powered down.

8. Energy Efficiency:

   • The WS-C3560-48TS-S is designed with energy efficiency in mind. It supports Energy Efficient Ethernet (EEE), which dynamically reduces power consumption during periods of low network activity, leading to energy savings and reduced operational costs.

9. Comprehensive Network Management:

   • The WS-C3560-48TS-S is compatible with a range of network management tools, including Simple Network Management Protocol (SNMP), Cisco Prime, and Cisco Network Assistant. These tools allow network administrators to monitor, configure, and troubleshoot the switch effectively.

Hardware Specifications of Cisco WS-C3560-48TS-S:

• Ports:

  • 48 x 10/100/1000 Ethernet ports (Gigabit Ethernet)
  • 4 x Gigabit SFP ports for fiber-optic uplink connectivity

• Switching Capacity: 128 Gbps (full-duplex)

• Forwarding Rate: 95.23 million packets per second (mpps)

• Form Factor: 1U rack-mounted

• Dimensions: 1.73 x 17.5 x 12.0 inches (44 x 445 x 305 mm)

• Weight: 7.2 kg (15.9 lbs)

Use Cases for Cisco WS-C3560-48TS-S:

1. Enterprise Networks:

   • The WS-C3560-48TS-S is ideal for medium-to-large enterprise networks, where high-bandwidth connectivity and Layer 3 routing are needed to support data, voice, and video applications.
   • It ensures efficient communication between different VLANs and is well-suited for environments where network segmentation is a priority.

2. Campus Networks:

   • This switch is perfect for use in campus network environments, where it can act as a core or distribution layer switch. It enables inter-VLAN routing and offers the ability to scale and grow the network with StackWise technology.

3. Data Centers:

   • The WS-C3560-48TS-S is an excellent choice for data center environments where reliable Layer 3 routing and high-speed connectivity are essential for interconnecting servers, storage systems, and other critical infrastructure.

4. Branch Offices:

   • This model is a great option for branch office deployments, where it provides reliable network connectivity for remote locations that need to connect to a central data center or corporate office.

5. VoIP and Wireless Networks:

   • The WS-C3560-48TS-S can be used in environments with VoIP (Voice over IP) systems or wireless networks, offering QoS (Quality of Service) to prioritize voice and video traffic for optimal performance.
