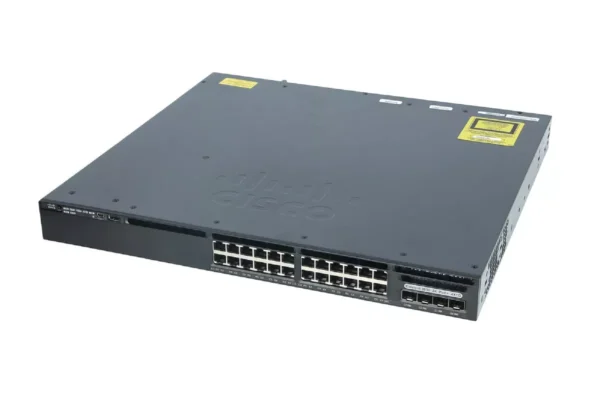

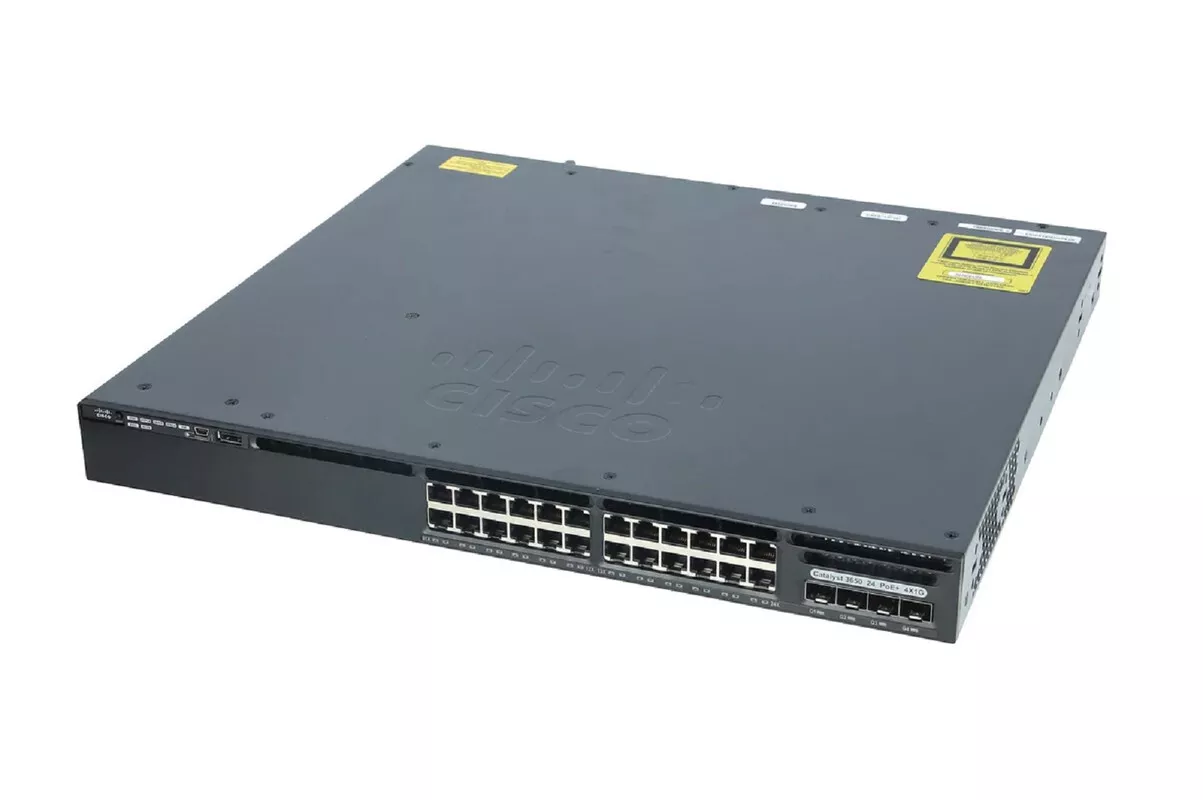

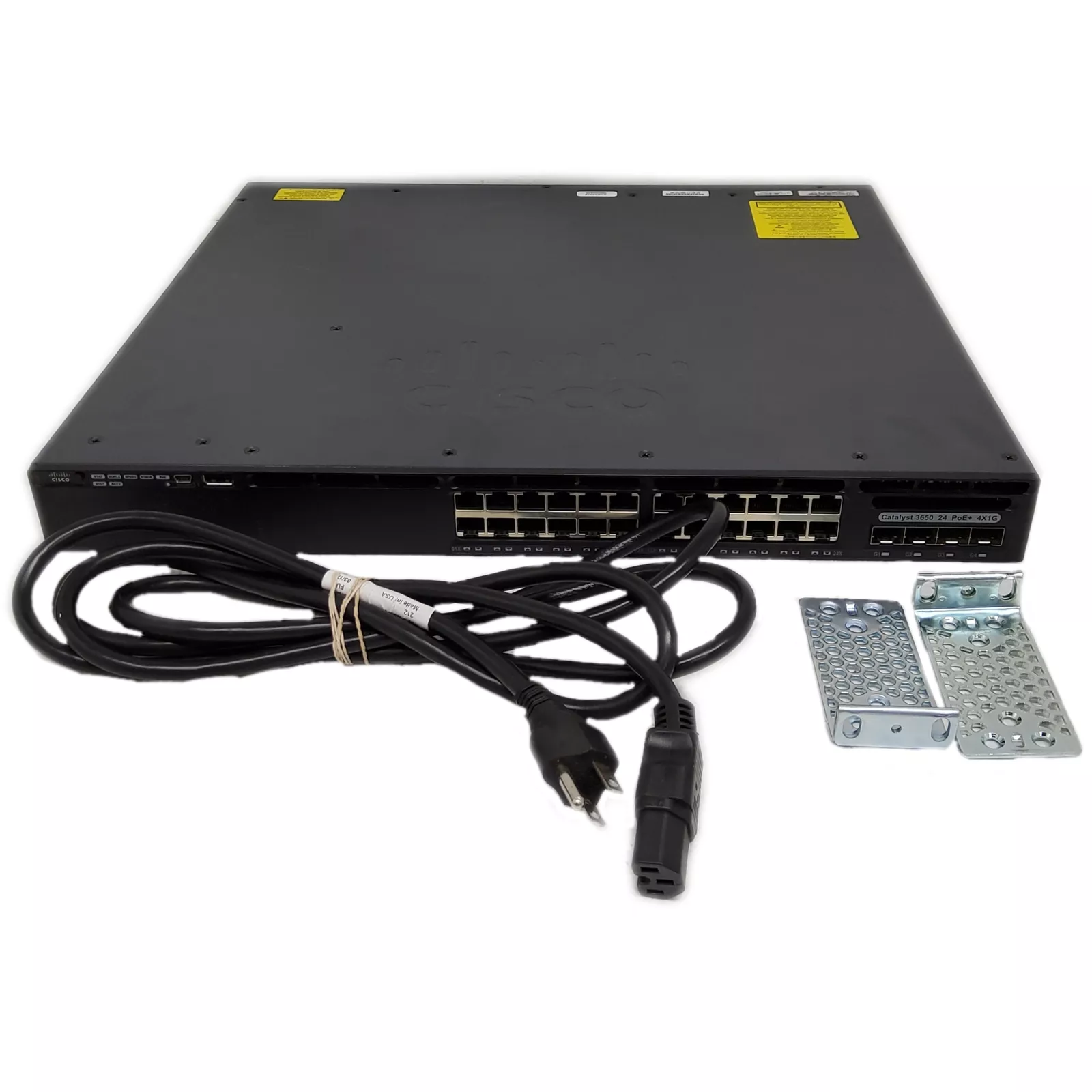

WS-C3650-24PS-E

Key Features:

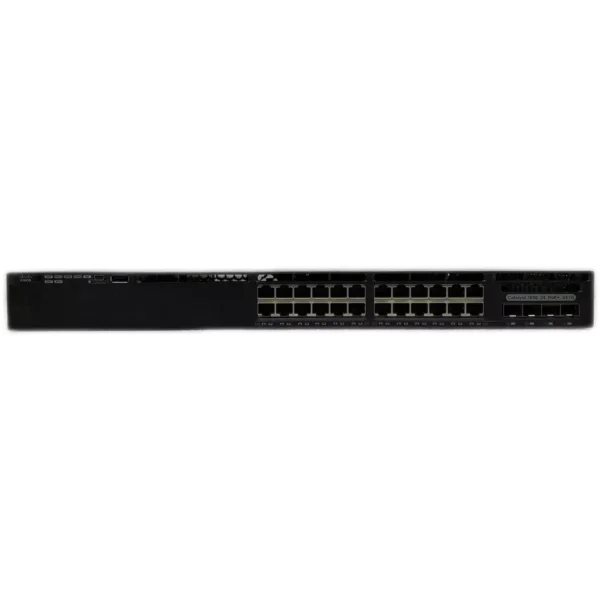

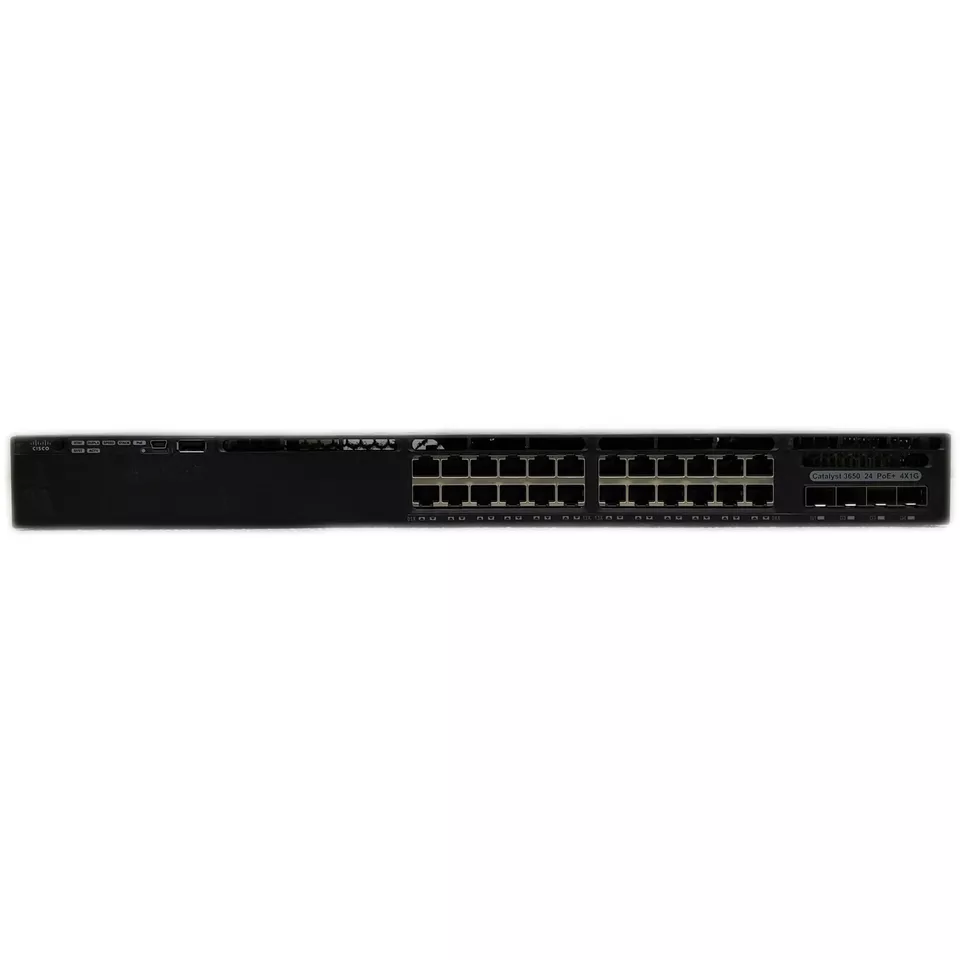

1. 24 Ports: The switch offers 24 Gigabit Ethernet ports, which can be used to connect devices like computers, access points, and other network devices.

2. Power over Ethernet (PoE): The -PS in the model number indicates that this is a PoE-enabled switch. It can supply power to connected devices, such as IP phones, wireless access points, and cameras, through the Ethernet cable, eliminating the need for separate power adapters.

3. Layer 3 Routing: The Catalyst 3650 series supports Layer 3 routing (static and dynamic routing), which allows the switch to make routing decisions and facilitate communication between different VLANs (Virtual Local Area Networks) without needing a separate router. This is ideal for environments where you need integrated routing and switching capabilities.

4. Stackable: The WS-C3650-24PS-E switch supports Cisco StackWise-160 technology, allowing you to stack multiple switches together to form a single logical unit. This simplifies management and improves redundancy, providing increased bandwidth and fault tolerance.

5. Advanced Security Features: Cisco’s Catalyst 3650 Series includes security features such as 802.1X authentication, ACLs (Access Control Lists), and Dynamic ARP Inspection to protect against various network threats.

6. QoS (Quality of Service): The switch offers advanced Quality of Service features that prioritize network traffic, ensuring optimal performance for critical applications such as voice and video conferencing.

7. Energy Efficiency: As part of Cisco’s initiative to provide energy-efficient devices, the 3650 series includes Energy Efficient Ethernet (EEE) technology, which reduces power consumption during low traffic periods.

8. Enterprise-Grade Management: It is compatible with Cisco’s DNA Center and Cisco Prime Infrastructure for easy management, monitoring, and troubleshooting of the network.

9. Supported Software: This model supports both Cisco IOS XE Software and Cisco IOS Software, offering a wide range of features and services for enterprise networking.

Use Cases:

• Enterprise Networks: Due to its PoE capabilities, Layer 3 routing, and high-performance features, this switch is ideal for medium-to-large enterprise networks that require high bandwidth and robust security.
• VoIP and Unified Communications: The ability to supply power over Ethernet makes it suitable for connecting IP phones and other devices in unified communication setups.
• Wireless Networks: This switch can support wireless access points and help manage large wireless deployments across the enterprise.

Specifications:

• Ports: 24 Gigabit Ethernet ports (10/100/1000)
• PoE Support: Up to 370W total PoE power (depending on the configuration)
• Switching Capacity: 58.8 Gbps
• Forwarding Rate: 43.4 Mpps (Million packets per second)
• Dimensions: 1.73 x 17.5 x 10.5 inches (44 x 445 x 267 mm)
• Weight: Approximately 7.3 kg (16 lbs)
