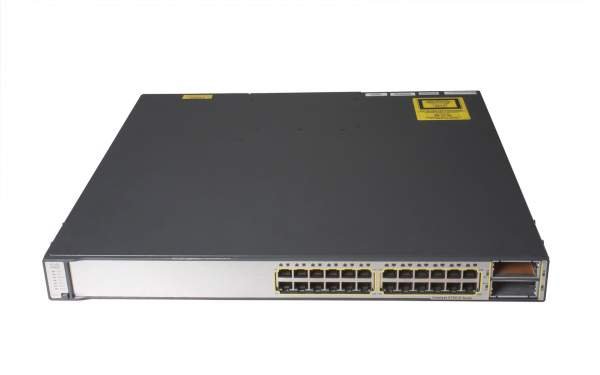

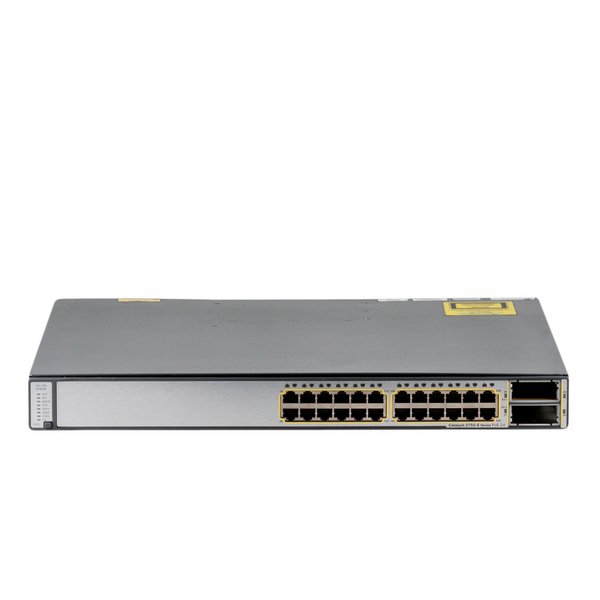

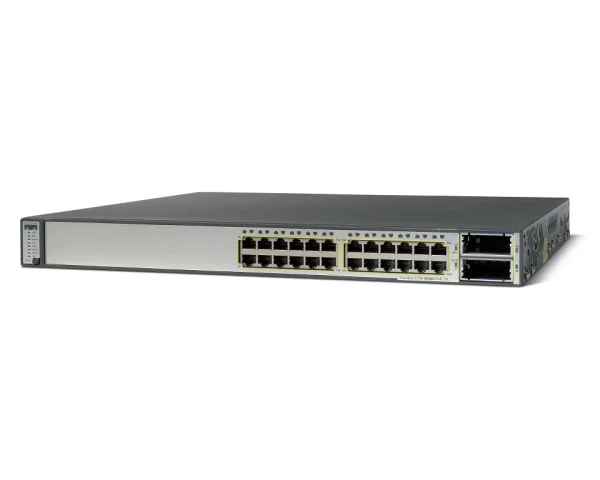

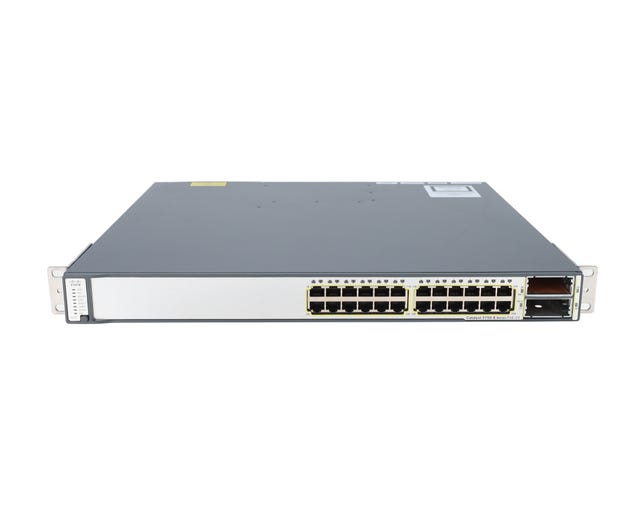

WS-C3750E-24PD-S

Key Features of the Cisco WS-C3750E-24PD-S:

1. 24 Gigabit Ethernet Ports:

   • The WS-C3750E-24PD-S is equipped with 24 x 10/100/1000 Mbps Gigabit Ethernet ports, providing high-speed connectivity for devices such as computers, workstations, servers, and networked devices.
   • The Gigabit Ethernet ports ensure fast data transfer and efficient network communication, meeting the needs of modern, bandwidth-intensive applications.

2. Power over Ethernet (PoE):

   • One of the standout features of the WS-C3750E-24PD-S is its 24 PoE-enabled ports. This allows you to power IP phones, wireless access points (APs), IP cameras, and other PoE-compliant devices directly from the switch, eliminating the need for separate power adapters.
   • The total PoE power budget is 370W, allowing for power distribution to connected devices without requiring additional power infrastructure.

3. Layer 3 Routing Capabilities:

   • The WS-C3750E-24PD-S is a Layer 3 switch, meaning it supports IP routing capabilities between different VLANs (Virtual LANs), enabling seamless communication across subnets in large enterprise networks.
   • The switch supports various routing protocols such as RIP (Routing Information Protocol), OSPF (Open Shortest Path First), and static routing, making it ideal for complex network environments where inter-VLAN routing is required.

4. Cisco StackWise Technology:

   • The WS-C3750E-24PD-S supports Cisco StackWise technology, which allows multiple switches to be stacked and managed as a single logical unit. This simplifies management and improves scalability, as you can add additional switches to the stack as your network grows.
   • With StackWise, stacked switches share a unified configuration and can operate as a single device, offering high availability and seamless failover.

5. Enhanced Security Features:

   • The WS-C3750E-24PD-S offers robust security features to protect your network from unauthorized access and attacks:
     • 802.1X Port-Based Authentication: This ensures that only authorized devices can access the network.
     • Access Control Lists (ACLs): ACLs help define rules for traffic filtering, ensuring that only legitimate traffic is allowed into the network.
     • Dynamic ARP Inspection (DAI): Prevents ARP spoofing attacks, helping to ensure the integrity of network communications.
     • DHCP Snooping: Protects against rogue DHCP servers by inspecting DHCP packets and ensuring that only trusted servers can assign IP addresses.
     • Private VLANs: Provides isolation between devices within the same VLAN, improving security and reducing the risk of broadcast storms.

6. Quality of Service (QoS):

   • The WS-C3750E-24PD-S supports advanced QoS (Quality of Service) features to prioritize traffic for mission-critical applications like VoIP and video conferencing.
   • It ensures that high-priority traffic receives the necessary bandwidth and low latency, while less important traffic can be deprioritized. This is essential for maintaining the quality of time-sensitive applications.

7. Redundancy and High Availability:

   • The WS-C3750E-24PD-S includes redundant power supply (RPS) support, ensuring that your network remains operational even if the primary power supply fails.
   • The switch also supports hot-swappable fan modules, which can be replaced without disrupting network operations, contributing to overall system availability.

8. Energy Efficiency:

   • The WS-C3750E-24PD-S is designed with energy-efficient features, including Energy Efficient Ethernet (EEE). This feature reduces power consumption during periods of low network activity, which helps to reduce operating costs and makes the switch more eco-friendly.

9. Comprehensive Network Management:

   • The WS-C3750E-24PD-S is compatible with Cisco IOS Software, which provides powerful management and configuration features for network administrators.
   • The switch supports various management protocols, including Simple Network Management Protocol (SNMP), CLI (Command-Line Interface), Cisco Prime, and Cisco Network Assistant for monitoring, troubleshooting, and managing network performance.

Hardware Specifications of Cisco WS-C3750E-24PD-S:

• Ports:

  • 24 x 10/100/1000 Ethernet ports (Gigabit Ethernet)
  • 4 x Gigabit SFP (Small Form-Factor Pluggable) ports for fiber-optic uplink connectivity

• PoE:

  • 24 x PoE-enabled ports
  • 370W PoE power budget

• Switching Capacity: 64 Gbps (full-duplex)

• Forwarding Rate: 47.62 million packets per second (mpps)

• Form Factor: 1U rack-mounted

• Dimensions: 1.73 x 17.5 x 12.0 inches (44 x 445 x 305 mm)

• Weight: 6.9 kg (15.2 lbs)

Use Cases for Cisco WS-C3750E-24PD-S:

1. Enterprise Networks:

   • The WS-C3750E-24PD-S is ideal for large enterprise networks where Gigabit Ethernet connectivity, PoE support, and Layer 3 routing are needed.
   • It provides the flexibility to support VoIP systems, wireless access points, and other PoE devices, making it suitable for modern, integrated network environments.

2. Campus Networks:

   • This switch can be used in campus network deployments for both core and distribution layers. Its PoE capabilities make it suitable for powering devices like wireless access points and IP phones in these environments.

3. Data Centers:

   • The WS-C3750E-24PD-S can serve as an aggregation switch in data centers, providing reliable inter-VLAN routing and high-speed connectivity to server racks, storage systems, and other critical infrastructure.
   • Its stacking capabilities enable high scalability for growing data center networks.

4. Branch Offices:

   • This model is perfect for branch office deployments, providing PoE for devices such as IP phones and wireless access points while also offering Layer 3 routing to ensure connectivity back to the main office or data center.

5. VoIP and Wireless Networks:

   • The WS-C3750E-24PD-S is especially suited for VoIP (Voice over IP) and wireless networks where PoE is essential for powering IP phones and wireless access points. The switch’s QoS capabilities ensure that voice and video traffic are prioritized for the best quality.
